DC220 Backward-Curved Centrifugal Fan — 960 m³/h

DC IP54
BC220A-D092A6-01 Centrifugal Fan — 960 m³/h at 590 Pa
🔍

Product Overview

BC220A-D092A6-01 is a DC centrifugal fan with a 24 Vdc [16–28 Vdc] input, delivering 960 m³/h at up to 590 Pa, 100 W, 3000 r/min, 73±2 dB(A). Used in AHUs, fan coils, range hoods, air purifiers and ERV units. USD 39–95 FOB Nansha, MOQ 280 pcs, 25–30 days.

  • Compact industrial housing (IP54)
  • Long-life NSK ball bearings

Selection notes

BC220A-D092A6-01 belongs to the BC220 range: a DC centrifugal fan rated 24 V DC [16-28VDC], 960 m³/h at up to 590 Pa, 3000 r/min. Speed is set through 0-10V/PWM; the datasheet sound pressure is 73±2 dB(A).

Duty point: 960 m³/h at 590 Pa. Because speed can be trimmed through 0-10V/PWM, the same unit can be re-set on site if the measured system resistance differs from the design value. For the destination market the grid is typically 110–240 V, 50/60 Hz, with CE, UL/ETL or CCC depending on destination as the compliance framework.

Technical Specifications

Category Centrifugal Fan
Model BC220A-D092A6-01
Motor Type DC
Airflow 960 m³/h
Max Static Pressure 590 Pa
Voltage 24 V DC [16-28VDC]
Power 100 W
Current 4.5±5% A
Speed 3000 r/min
Noise 73±2 dB(A)
Protection Class IP54
Working Temperature -25 °C ~ +60 °C
Impeller Material PA6+GF25%
Bearing Type NSK ball bearing
Speed Control 0-10V/PWM

Data updated 2026-10

Ordering Information

MOQ (Min. Order Qty) 280 PCS
FOB Price FOB Nansha Guangzhou
Reference price US$39–95
Lead Time 25-30 days
Sample Sample available
Payment Terms TT
Shipping Port Nansha Guangzhou OR Yantian Shenzhen

Performance Curves

0200400600800100002004006008001000 Airflow (m³/h) Static pressure (Pa) 960 m³/h 590 Pa

Dimensions (No.3)

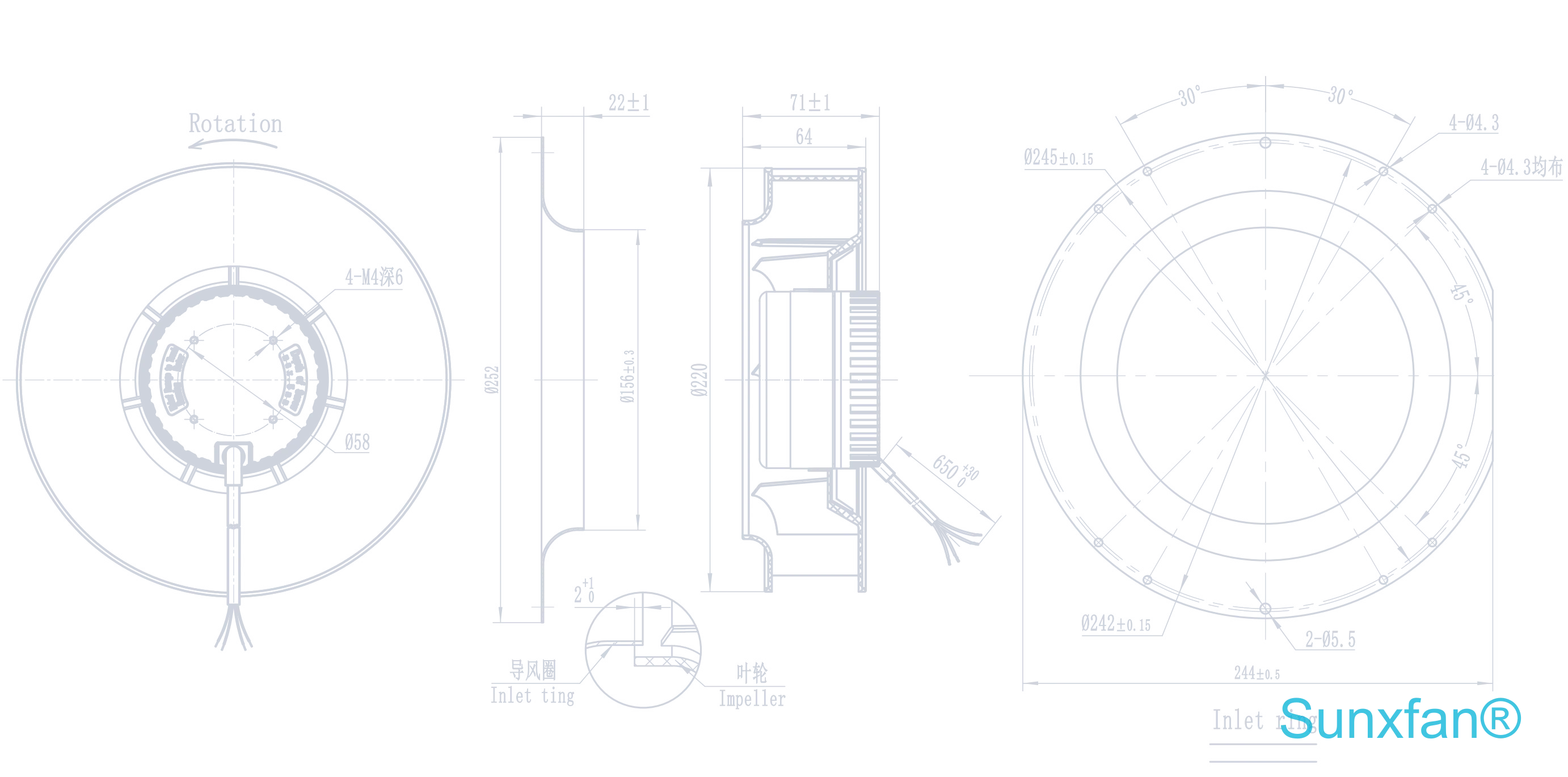

BC220A-D092A6-01 Centrifugal Fan — outline drawing, dimensions in mm

Special Remarks

Impeller material: PA6+GF25%

Applications

220 mm backward-curved centrifugal fans covering 920–1,180 m³/h at 590–815 Pa — pressure for long duct runs, HEPA stages and ERV cores. One frame, three motor schemes: AC fixed-speed, DC (24 V wide-range, 115 V) and EC (0-10V/PWM). IP54.

Product dataSheets (PDF Download)

View Product dataSheets (PDF) PDF · DC·Centrifugal fan:BC220A-D092A6-01 Product dataSheets
